Tractors

6C Series

AS VERSATILE AS A FARM CAN BE.
Power: 129-137 HP
Cylinders: 4
Weight: 5.000-5.500 kg
Wheelbase: 2.480-2.510 mm

Total configurability.

Offering endless scope for configuration, with 3 models, power outputs from 126 to 143 HP, a choice of 3 transmission types, potent hydraulic systems with load sensing pumps with capacities up to 120 l/min and a host of options, these tractors can be tailored to perfection for even the most specific need. All 6C Series models come with four cylinder Stage V engines, TopVision 4-pillar cabs and a choice of all-new SDF Smart Farming Solutions.

Request a quote
Find out the details

6C Series

Request a quote
Back to info

    Overview

    • Engine

    • Transmission

    • PTO

    • Hydraulic system

    • Brakes

    • Cab

    Ultra-compact, ultra-efficient.

    As well as outstanding levels of reliability and performance, the new Deutz TCD 3.6 / FARMotion 45 Stage V four cylinder engines also boasts extraordinarily low operating costs. These state of the art engines feature impressive torque over a very broad range of engine speeds ensuring rapid responsiveness to changes in load. Electronically controlled common rail fuel injection, the eVisco viscostatic fan, PowerCore air filters and highly efficient transmissions form an impressive package of high-tech solutions minimising both fuel and AdBlue consumption. Generously sized tanks (with a 160 litre fuel tank and 12 litre urea tank) ensure more than adequate range for every possible task. Offered with a choice of power outputs up to 120, 129 and 137 HP (for the 6115C, 6125C and 6135C models respectively), all engine variants also include a specific power boost map implemented automatically when the PTO is in use or at road speeds exceeding 15 km/h, which increases the maximum power of the respective model to 126, 136 and 143 HP.



    Class-beating efficiency, performance and configurability.

    The new 6C Series is available with 3 different transmission types: an essential configuration, with mechanical main gearbox and 3-stage powershift, the innovative RVSHIFT full-powershift transmission, and the range-topping high-tech TTV continuously variable transmission. The 6C Series lets you choose the best suited transmission configuration for your specific needs. All transmission versions come with an electrohydraulic PowerShuttle. Direction inversion manoeuvres are executed with no interruption in torque delivery to the wheels, even under load, maximising safety especially when working on steep gradients. As well as all this, a choice of 5 user-selectable responsiveness settings and the Stop&Go and PowerZero functions make working with a front loader easier than ever. All models are capable of attaining their maximum road speed (40 Km/h for base transmission version or 50 Km/h for RVSHIFT and TTV versions) in part throttle conditions, maximising fuel efficiency and range.



    All the power you need.

    The new 6C Series also offers extraordinary scope for configuration for working with PTO-powered implements. For unparalleled versatility and efficiency with every possible type of implement, the rear PTO features a progressively controlled electrohydraulic multiplate clutch with automatic implement measuring function. The interchangeable splined output stub shaft can be removed and replaced quickly and safely for working with different implements. On tractor versions with Powershift, the rear PTO comes as standard with 540 and 540 ECO speed modes, while 1000 and 1000 ECO modes are available as an option, to give a total of 4 selectable PTO speed modes. RVShift and TTV versions, on the other hand, feature 540, 540 ECO and 1000 speed modes. As options, all 6C Series models can be equipped with a transmission-synchronised groundspeed PTO (with independent output shaft) and a 1000 rpm front PTO, also with electrohydraulic multiplate wet clutch.

    Modular hydraulics with all the configurability you'll ever need.

    6C Series tractors are equipped with either a hydraulic circuit with 90 l/min gear pump or, as an alternative, a 120 l/min load sensing system with variable displacement pump.
    The load sensing system delivers exactly the flow rate needed in response to the effective demand for oil, and features a combination of mechanically and electronically controlled distributors to ensure complete compatibility with any type of implement.
    Both hydraulic system configurations are offered with at least 10 rear hydraulic couplers, Power Beyond couplers, a potent electronic rear lift with capacities up to 7000 kg and a 3000 kg front lift with an additional 2 front couplers. On all versions, a secondary pump with an output of approximately 40 l/min feeds oil exclusively to the ancillaries and steering system, ensuring seamless steering action even at idle speed and when the lifts and distributors are in use.

    Uncompromised safety.

    Designed and built entirely in-house, the front axle features electrohydraulically selected 4WD and a 100% lockable differential lock, which can also be engaged and disengaged automatically by the ASM function. For impeccable braking safety with a car-like brake pedal feel, these tractors are equipped with wet disc brakes on all 4 wheels operated by a Powerbrake booster. Boasting an impressive load capacity of 3000 kg and a maximum steering angle of 55°, the front axle is also available with dual hydraulic cylinders on all models in the family. RVShift and TTV models can also be equipped with the Hydraulic Parking Brake, a combined mechanical-hydraulic system which applies constant pressure to the rear disc brakes to hold the tractor in complete safety on any gradient. The new 6C Series is available with every type of trailer braking system currently in use, with a choice of hydraulic, pneumatic or combined systems making these machines even more versatile and offering the ideal solution even for heavy duty road transport usage.



    Unbeatable comfort and impeccable all-round visibility.

    The new TopVision cabs offer outstanding levels of comfort. Innovative Hydro Silent-Block mounts reduce vibration by 40% compared with conventional components, while optional mechanical cab suspension is also available to take comfort even further. The 4-pillar structure and generous glazing ensure excellent outward visibility, while minimised noise levels, superior quality materials and the ergonomically superior layout of the cab make any job less tiring. Heated, electrically adjustable rear view mirrors and the heated rear screen ensure a clear view even in the coldest weather conditions.
    RVShift and TTV versions are available with the InfoCenterPro, which puts the driver in complete control over all the functions of the tractor and adds programmable sequences of operations for routine actions. A huge choice of other options, such as a bracket for mounting a third party monitor or other devices, a passenger seat, an audio system with DAB+ radio, numerous electrical outlets (including 2 USB ports) and a 12V refrigerator let you configure every tiny detail of the cab to suit your specific needs.

    Confronto tra elementi

    • POWERSHIFT

    • RVSHIFT

    • TTV

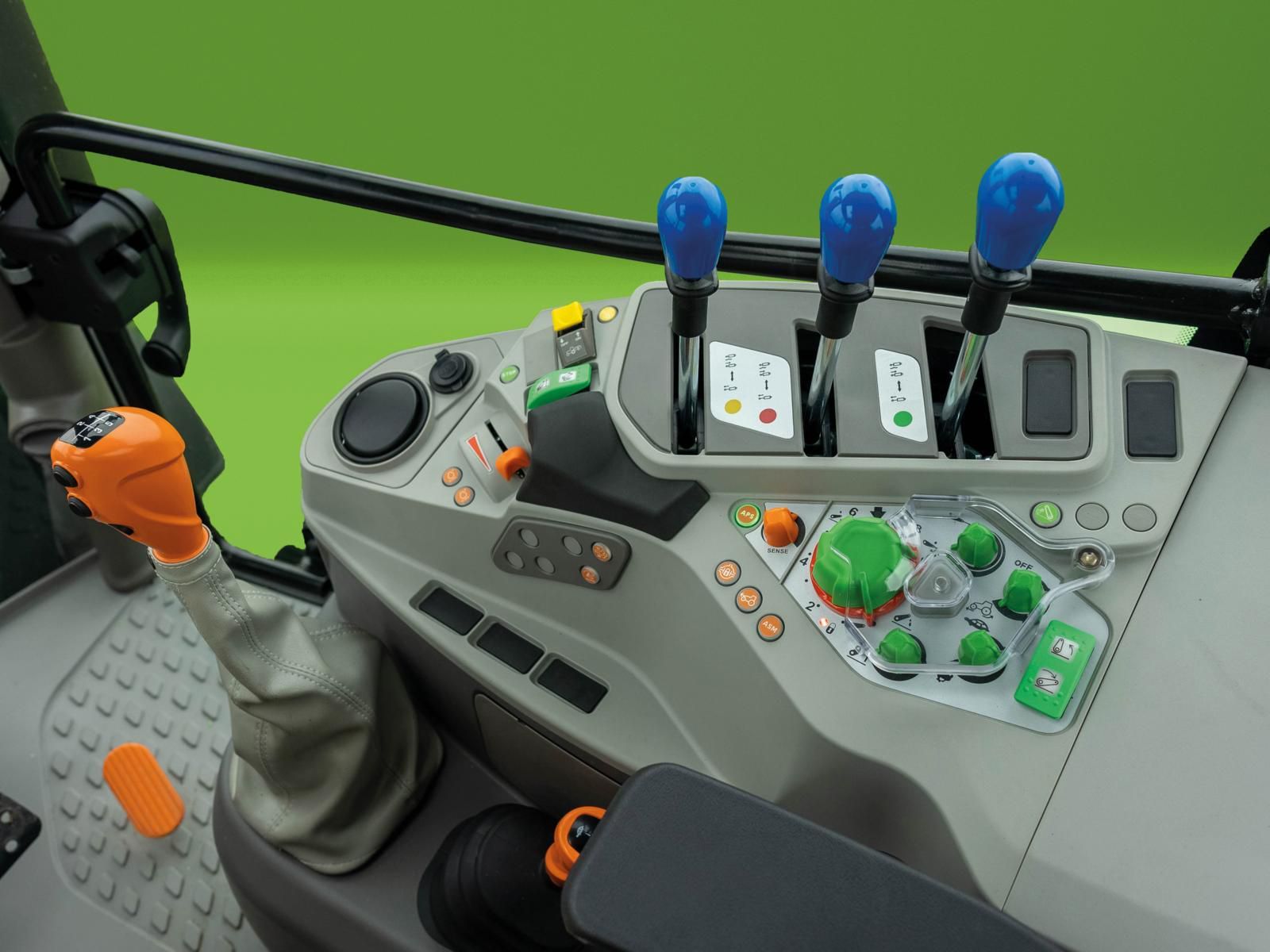

    The new DEUTZ-FAHR 6C Series with Powershift transmission is equipped with transmissions offering up to 5 manually selected speeds, 4 work ranges, 3 Powershift steps and a PowerShuttle. All versions with the 3-stage Powershift also come with the Speed Matching function and an Automatic Powershift (APS), which is fully adjustable to suit the preferences of the operator.

    The new RVshift transmission is a high efficiency full Powershift concept. It features 20 forward and 16
    reverse speeds, all of which selectable without using the clutch pedal and without interrupting torque
    delivery. Developed specifically for the new 6C series by DEUTZ-FAHR it stands for absolute simplicity,
    high efficiency and guarantees to make the tractor easy to use by anyone.

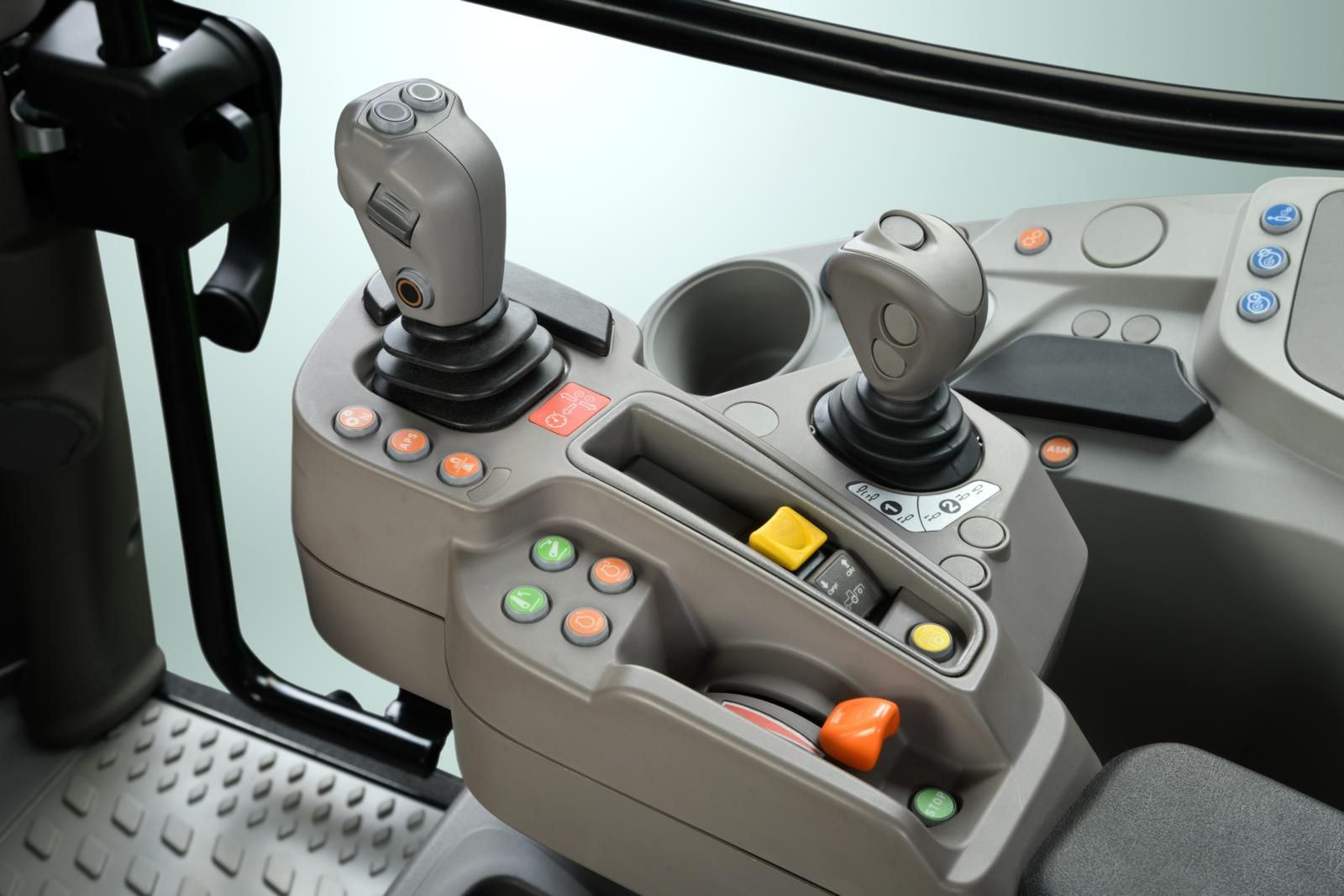

    The control element of the new RVshift transmission is the new RVshift controller, a 3-way joystick,
    located on the multifunction armrest mounted onto the driver seat.

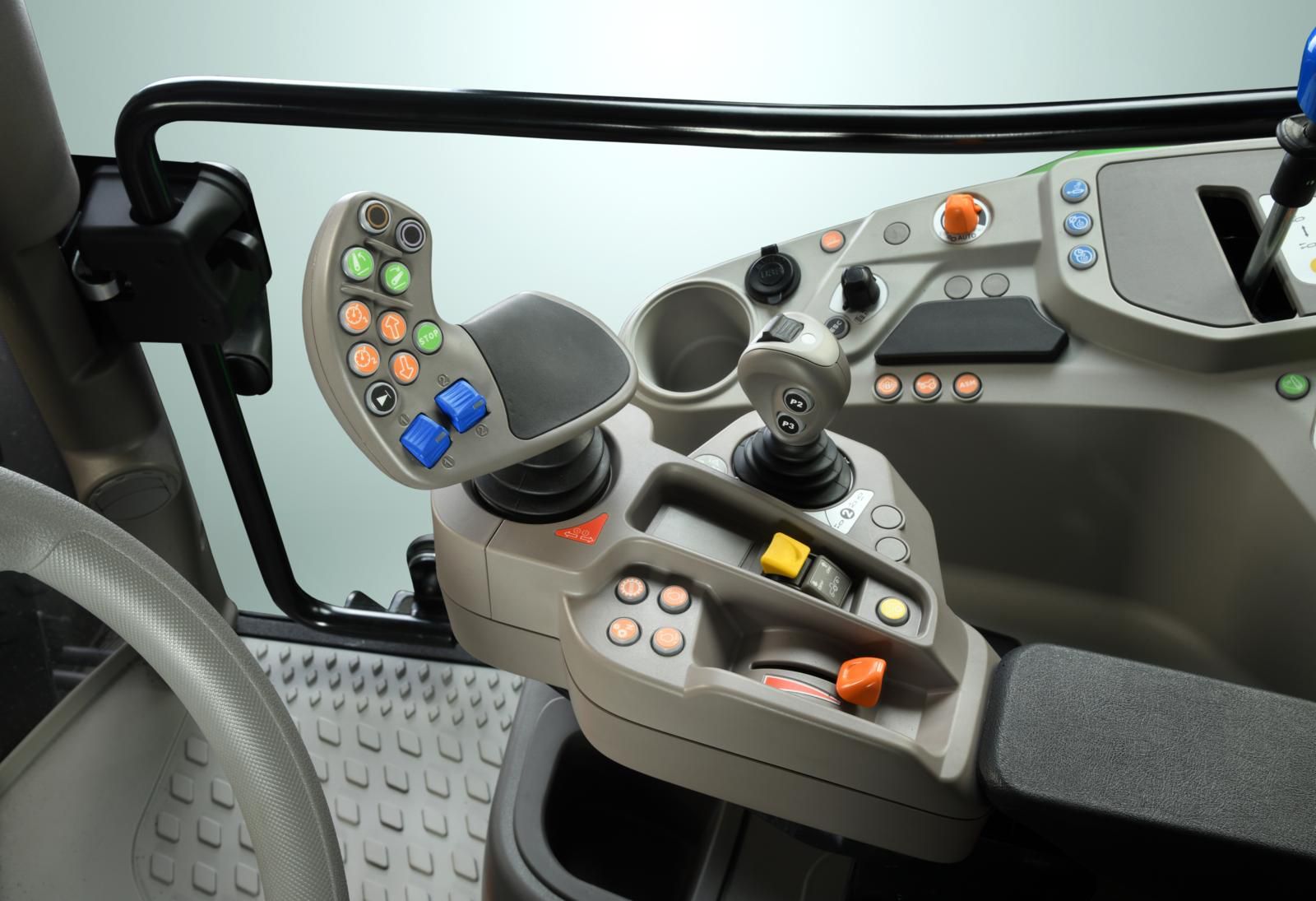

    The TTV transmission set benchmarks in this class for efficiency and reliability and represents the state
    of the art in transmission technology for agricultural tractors. It offers a range of speeds from 0,02 to 50
    kph – which is unique in this power class. Every single detail is designed to maximise productivity, while
    the sophisticated new control and software also improve drivability. The TTV transmission delivers
    uniform and seamlessly smooth power in all conditions without jolting and stands for high efficiency,
    low fuel consumption and extreme tractive power

    Try it in the field

    Request a test drive

    3D Experience

    Color

    Technical specifications

    ASM

    An electronic system which automatically engages and disengages drive to the front wheels and the differential lock in relation to steering angle, speed and rear lift position (depending on model).

    SDD

    Steering double displacement. This is a dual rotor steering pump activated and deactivated using a button. A dedicated solenoid valve changes the displacement of the steering pump. This halves the number of steering wheel turns necessary to perform manoeuvres.

    Jolly Buttons

    To the freely programmable buttons the operator can assign the power shuttle, the fast steering system, the rear lift, the hydraulic valves and even more functions. This makes the daily work intuitive and extremely comfortable.

    Hydraulic Engine Break (HEB)

    Thanks to HEB, the hydraulic system, together with eVisco fan, can develop engine braking performance and increase safety during transport, especially on a downhill slope. The system is mainly based on the tractor's hydraulic system and can be modulated in different steps.

    Xtend

    XTEND allows the display area to be extended easily, with a tablet, for example. You can either display the guidance application or even fully control all ISOBUS-UT functions – with your tablet! It is a cost-efficient and user-friendly alternative solution to a second terminal.

    EasySteer

    Easy Steer is a feature of the steering orbitrol to decrease the manual steering movements of the driver. Once activated with a button on the armrest, four steps (from 0-4) can be adjusted via settings in the iMonitor. The benefits are quick turning manoeuvres in headland and added convenience for the driver.

    AutoTurn

    The Auto-Turn feature allows automatic turns to be performed on the headland. You as the driver can decide which track to steer into. Different patterns are available – whether to skip lines or fill plots. Benefit from added convenience, decreased soil compaction on the headland and time saved!

    Hydraulic park-brake (HPB)

    Park brake for stopping the tractor and safely maintaining a stationary position in all gradient conditions. The park brake consists of a combined mechanical-hydraulic system which exerts a constant pressure on the rear brake discs. In addition, power losses up to 1.5 kW are eliminated, ensuring the lowest fuel consumption.

    Equipment and options

    WARRIOR edition.

    For owners who like to stand out from the crowd, DEUTZ-FAHR offers the coveted Warrior equipment variant for the new 6C Series models. Take advantage of the special Warrior LED lighting pack and enjoy the luxury of the comfortable pneumatic seat, the air conditioning system and the audio system with DAB+. With taking the choice of a Warrior Edition the new 6C series makes a bold impression and stands out unmistakeably from the crowd.

    Front Loader

    The extreme versatility of the new 6C Series truly comes to the fore when these tractors are used with
    a front loader. This is why these tractors are available from factory with a choice of two kits for the
    installation of a front loader. The Light kit provides only the frame to connect the front loader to the
    tractor, while with the Ready kit in addition are installed also all the hydraulic/electric connections and
    the control joystick (mechanical or electronic).

    SDF Smart Farming Solutions

    PRECISION IS THE BASIC PREREQUISITE FOR PRODUCTIVITY

    SDF Smart Farming Solution allows users to have the freedom and power to choose the products that best suit their business needs, maintaining full ownership of their decisions and their data. We provide products and services that perfectly match the practical requirements of today’s farmers, contractors or any other users:

    Discover more
    Services featured on 6C Series:
    • ISOBUS
    • SDF Guidance
    • SDF Data Management
    • iMonitor 3
