5 DF/DS/DV Series TTV
THE MOST ADVANCED TECHNOLOGY FOR WORKING BETWEEN THE VINE ROWS.
EXCELLENCE IN CONSTANT EVOLUTION.
Conceived specifically to maximise productivity with unparalleled versatility and efficiency, the new 5 Series DF/DS/DV TTV family boasts class-beating technology and ergonomics, for working with uncompromised performance in even the most restricted spaces. With more powerful and fuel efficient new engines, TTV transmissions and load sensing hydraulic systems with 100 l/min pump, the new series raises the bar even further for safety, on-board comfort and productivity.
5 DF/DS/DV Series TTV
Compact, efficient and developed specifically for farming.
The new 3 and 4 cylinder FARMotion 35 and 45 engines equipping the latest generation 5 Series DF/DS/DV TTV family are even more powerful and fuel efficient than ever. These engines feature decidedly innovative technical content such as high pressure Common Rail injection (with injection pressures of up to 2000 bar), 7-hole injectors, an electronically controlled viscostatic fan, PowerCore air filters and the OverBoost function. The result is an impressive package of high-tech solutions minimising fuel consumption while maximising productivity. The extraordinary compactness of the suite of exhaust aftertreatment solutions used, with an externally, cooled and EGR circuit with electronic recirculated flow control, DOC (diesel oxidative catalyst), passive DPF and SCR, has made it possible to maintain the same overall dimensions as the previous Stage IIIB generation power unit, to ensure a generous steering angle and excellent forward visibility from the driver seat. As well as featuring a host of new technological solutions implemented to meet Stage V emissions standards, all the engines in the range also deliver more torque and power than before, with the range-topping model boasting an impressive maximum power output 116 HP (126 HP with the OverBoost function active).
Smooth, efficient and reliable.
The state of the art TTV transmission transfers power to the wheels effectively and efficiently in all conditions and at any speed, offering unrivalled comfort and seamlessly smooth power delivery without jolting, turning the impressive power of the engine effectively into superior productivity, with no loss in performance. And on top of all this, the transmission even allows for a top speed of 40 Km/h achievable at engine economy speed!
The ergonomic MaxCom console offers fingertip control over all the main functions of the tractor, for unprecedented simplicity and practicality. For instance, direction inversions can be performed simply and easily with the user-programmable buttons on the joystick, while the Sense dial lets the operator select within a range of engine and transmission modes from “ECO”, for minimised fuel consumption, to “Power”, for maximum power and productivity.
Engine speed and transmission drive ratio are matched automatically in real time to keep the tractor working as efficiently as possible, whatever the conditions. The operator can save up to 2 forward and 2 reverse speeds, and recall them whenever needed by simply pressing the relative buttons.
Total versatility and efficiency.
On the new 5 Series DF/DS/DV TTV, even the rear PTO is conceived for superlative functionality, versatility and performance. All variants of the rear PTO and the optional front PTO are equipped with a proportionally engaged electromechanical clutch with automatic load sensing function, for starting and stopping implements without sudden kickback - which also contributes to maximising the lifespan of the implements themselves.
All versions are offered as standard with the 3 universal speed modes (540 rpm, 540ECO and 1000 rpm), while a groundspeed rear PTO and a 1000 rpm front PTO are available as options. The output stub shaft of the rear PTO is quickly interchangeable on all versions, letting you set the PTO up rapidly and easily to work with any implement drive shaft type without having to use impractical and potentially dangerous adapters. For greater comfort and productivity when carrying out repetitive manoeuvres, all variants come as standard with a function which engages and disengages the PTO automatically in relation to the vertical position of the implement mounted on the 3-point linkage of the rear lift.
Outstanding configurability, power and precision.
The new 5 Series DF/DS/DV TTV family is available with a choice of extremely modular and potent hydraulic systems.
These tractors can be equipped with up to 5 electrohydraulic rear distributors and with up to 4 mid mounted distributors with an additional 3 hydraulic couplers duplicating from the rear distributors. All distributors feature electronic flow control and timer control, and are operated from a proportional joystick controller. A free return line is standard, while the PowerBeyond function is offered as an option. 5DF TTV models are offered with a choice of a system with an 84 l/min pump or an innovative variant with 100 l/min load sensing pump, which delivers a remarkable 70 l/min of oil flow at an engine speed of just 1350 rpm, while 5 Series DS/DV TTV models are equipped with a closed centre hydraulic system with 100 l/min pump as standard.
In all configurations, the main system feeds oil to the lift and distributors only, and a separate hydraulic circuit with 42 l/min pump dedicated delivers oil exclusively to the steering system and auxiliary utilities to ensure impeccably smooth steering action even at idle speeds. The 3800 kg rear lift (or 2600 kg on 5DS/DV TTV versions) is electronically controlled as standard, and comes with duplicated external controls mounted on the rear mudguards. The rear lift also includes an active oscillation damping function. An optional front lift with an impressive 1500 kg of maximum load capacity is also available.
Unique, innovative features for superlative safety.
As an alternative to a conventional high load capacity swing axle, the new 5 Series 5DF/DS/DV TTV family is also available with an exclusive adaptive independent front axle suspension system, which ensures optimised damping action in relation to vehicle speed, steering angle and roll angle to ensure unbeatable comfort and stability whether in the field or on the road.
As standard, the active front suspension control software also includes Anti-dive and Anti-roll functions, which significantly improve both safety and productivity. Anti-dive counters sudden front suspension compression under braking to shorten stopping distances, while Anti-roll automatically adjusts damper stiffness when cornering, stiffening the suspension of the outer wheel to keep the vehicle correctly balanced, improving stability and grip and drastically reducing roll.
Also standard are true all-wheel braking and PowerBrake, which increases safety when holding the vehicle in a stationary position and reduces power losses by up to 2 HP compared with a conventional solution.
Electrohydraulically engaged 4WD and 100% lockable differential locks are standard, while a function for managing these functions automatically is also available as a option.
A comfortable lounge with state of the art technology.
A choice of three 4-pillar cab versions differing in width and mudguard design is offered to match the three different platform configurations of the 5DF/DS/DV TTV, and ensure unparalleled ergonomics ans comfort. The tapered profile of the cowl and generous glazing excellent all-round visibility, while the completely flat floor means even more legroom for the driver.

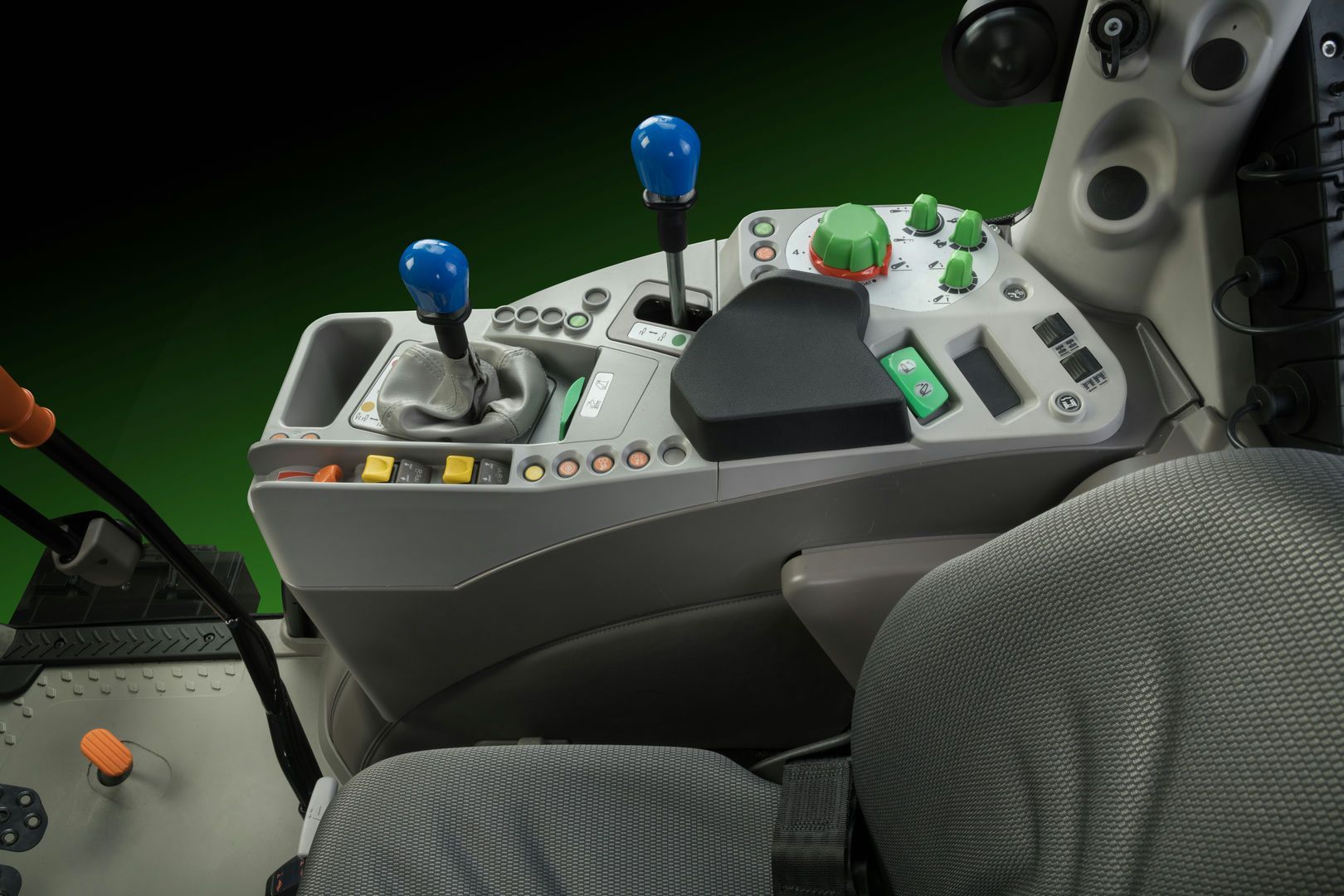

The steering wheel is adjustable for reach and rake, while as the instrument cluster is mounted on the steering column, adjusting the steering wheel also adjusts the position of the cluster so that it is ideally placed and easily visible for drivers of any stature. All the most frequently used controls are organised on the innovative MaxCom armrest, which is mounted directly onto the suspended seat. The InfoCentrePro displays all the information necessary concerning the status of the tractor clearly and lets the driver easily configure numerous functions. The most discerning users can also opt for the 8" iMonitor3 which not only makes setting machine parameters even easier but is also compatible with a wide range of precision farming solutions, such as autoguidance and Isobus connectivity.
The new cabs can also be equipped with a Category 4 compliant cabin air filtration system for applying protective crop treatments without using additional PPE.
Back to the card
Back to the card
Back to the card
Back to the card
Back to the card
Back to the card
Try it in the fieldRequest a test drive
SDF Smart Farming Solutions
PRECISION IS THE BASIC PREREQUISITE FOR PRODUCTIVITY
SDF Smart Farming Solution allows users to have the freedom and power to choose the products that best suit their business needs, maintaining full ownership of their decisions and their data. We provide products and services that perfectly match the practical requirements of today’s farmers, contractors or any other users:
Services featured on 5 DF/DS/DV Series TTV:
- SDF Guidance
- SDF Data Management
- iMonitor 3
Back to the card
Electronics make agricultural machinery smarter, more powerful, more precise and more efficient.
The concept of ISOBUS is: communication through a common language, independent from device and manufacturer. This has become especially important since many different manufacturers started developing electronic hardware and software applications to avoid functionality issues. Knowing that machinery on a farm might consist of equipment from different manufacturers, ISOBUS ensures standardised communication interfaces. Thanks to its reliable and secure operations, the number of machines equipped with ISOBUS is significantly increasing. The benefits of using ISOBUS technology and its wide range of functions are obvious.
GNSS guidance system for agricultural vehicles.
Highest Level of precision.
Guidance applications are becoming increasingly established as a standard in tractors and combines on many farms. The more precisely your work is accomplished, the more profitable it is. You can rely on the highest accuracy even in difficult working conditions such as in fog or at night-time. We can guarantee this to you thanks to the experience of thousands of customers working with SDF Guidance: those who worked with a steering system cannot do without it ever again. SDF Guidance means efficiency and the highest precision.
SDF Data Management
Customised data management solutions for farmers and contractors.
Running a business often includes complex activities. We therefore help you optimise your operations and, above all, increase the efficiency of your company. The SDF Connectivity solutions keep you connected and at the centre of the action at all times. Efficient data management is increasingly gaining significance: having machines, your office and other external sources connected simplifies your daily work, allowing for the convenient management of relevant data. SDF Data Management allows you to work with our products and with a combination of several independent applications, ensuring reliable data transfer and valuable machine and agronomic data analysis.
Central control unit which enables the management of all types of Precision Farming applications.
Working days can be long and demanding. As a central control element, the iMonitor can offer you assistance and provide you with the highest level of comfort. It includes various tractor settings, guidance systems, ISOBUS control and data management. The iMonitor is easy to operate and includes a state-of-the-art touchscreen. A crucial feature, considering its large number of functions: everything is available in one interface, conveniently integrated in the armrest. The iMonitor3 is a highly practical interface connecting driver, tractor, device and office. This helps you take the best advantage, and even increase the performance, of your machine. Offered in two sizes, the iMonitor3 is available as a factory option or can be retrofitted on any type of machine.
DEUTZ-FAHR provides one of the best warranties in the business
SDF ExtraCare safeguards your investment, provides you with maximum control over operating costs and ensures long life for your product. You can rely on the high technical knowledge and professional support provided by the DEUTZ-FAHR service network.
- Investment protection
- Preservation of value
- Better reselling opportunities
- Use of original components and lubricants
- Totally transferable
- Two options: 3 or 5 years warranty
