6 Series Powershift/RCshift
THE BEST TECHNOLOGY MIX TO FACE ANY TASK.
TOTAL EFFICIENCY.
The agricultural industry is highly diverse. Each individual enterprise has its own totally exclusive success strategy. But they all have one thing in common: they need to have the right equipment for their tasks. DEUTZ-FAHR has developed the new 6 Series PS/RCshift: 8 models ranging from 161 to 230 HP, 4 and 6 cylinder models, three wheelbases, two transmission variants and three cabin types enable our customers to create their own tractor - individually configured for each budget. With the new 6 Series PS/RCshift, DEUTZ-FAHR has redefined the configurability concept.

6 Series Powershift/RCshift
Overview
Engine
Transmission
PTO
Hydraulic system
Brakes
Cab
TOP PERFORMANCE AND MINIMAL MAINTENANCE.
The new 6 Series PS/RCshift is powered by updated DEUTZ 6.1 and 4.1 Stage V engines. The revamped Deutz TCD Stage V engines guarantee increased performance even at lower rpm, with tangible improvements in both torque curve and elasticity, for even smoother and more effective operation. In addition, with almost all the maximum torque available at just 1000 rpm, these tractors can tackle most tasks at low engine speeds, thereby ensuring significant fuel savings. Furthermore, completely new fuel tanks have been developed for all models. Combined with low fuel consumption and a capacity of up to 410 liters (on 6210 and 6230), extremely long operating times are possible.
The use of cutting-edge manufacturing techniques has enabled the production of engines characterised by extremely precise manufacturing tolerances. As a result, the engine oil change interval for the new Series 6 tractors has been extended to 1000 operating hours (or 2 years). The DEUTZ engines – modern technology Made in Germany – is synonymous with the highest levels of reliability and efficiency, allowing you to achieve the maximum from your work.

RCSHIFT OR POWERSHIFT: THE CHOICE OF TRANSMISSION TYPE IS YOURS.
What is the main focus of your tractor? Simple farmyard work, grassland work, transporting, pulling implements in the field or a mixture of all? The new 6 Series offers exactly the right transmission for any driver demand and any budget.
All transmissions are easy to operate and providing 50 kph at efficient engine speeds. In standard they include the hydraulic PowerShuttle for fast direction changes. Each transmission offers excellent efficiency, precision and driving comfort.

GREAT POWER AND MAXIMUM VERSATILITY.
With four PTO speeds 540/540ECO/1000/1000ECO at the rear in standard and 1000 or 1000ECO at the front, all work can be carried out very efficiently. With the DualSpeed front PTO option for 6 cylinder models the front PTO speed can be changed from the cab in the InfoCentrePro. This allows maximum operating efficiency at all times and means, that it is possible to operate frequently with the engine at low rpm. The InfoCentrePro provides clear, easily understandable information about hydraulic and PTO functions. All hydraulic and PTO functions can be easily set and controlled from the right console or armrest in the cab.

COMPLETELY MODULAR.
One of the design concepts adopted for the development of the new Series 6 PS/RCshift was maximum versatility for pairing with the widest range of implements. For the hydraulics, you can choose between mechanical and electro-hydraulic controls and up to five hydraulic valves in the rear and two in the front. The optional Load Sensing hydraulic pump output reaches up to 160 L/min while the rear lift capacity is up to 9700 kg. The front linkage system of the 6 Series range is available in three variants. 6160.4 - 6180 have a maximum capacity of 4110 kg while 5450 kg are possible on the 6190, 6210 and 6230 models. In addition an efficient front lift version with 3800 kg capacity is available for all models. Robust support for the front lift is part of the design of the new Series 6 and allows for equipment and ballasts to be connected quickly.

NO COMPROMISE BETWEEN SAFETY AND DRIVING COMFORT.
The new front axles, with their greater loadbearing capacity and an updated intelligent, adaptive suspension system provide the Series 6 with ultimate stability and comfort, both during the most challenging towing operations and when moving heavy loads. The innovative suspension concept stabilises the tractor during all transport operations and boosts driving safety. In order to guarantee better use on unstable terrain and on flat surfaces the InfoCentrePro can be used to select one of three different settings for the suspensions to optimize comfort in all working conditions.
The 6210 and 6230 Series 6 tractors can be fitted with high performance wet disc brakes on the front. For rapid braking reactions the brake assist, already present as standard, guarantees ultimate brake performance with less pressure on the pedal.
Moreover, 6 cylinder models can be equipped with an engine brake, for wear free braking. It increases safety and decreases service costs. The operation is comfortable, easy-to-use and reliable via an additional pedal that is located between the clutch and braking pedal.

ULTIMATE CONFIGURABILITY.

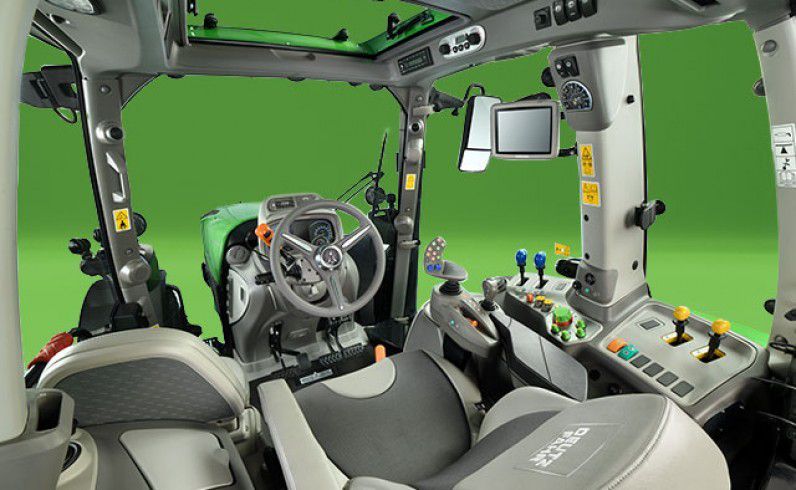

The revamped MaxiVision, MaxiVision+ and MaxiVisionPro cabs are the gold standard in their class and represent the next generation of a masterpiece of design, ergonomics and comfort. Now available with new XLarge Vision mirrors, openable front windscreen, a removable cooling box, 4.1 premium sound system system and various tablet and smartphone holders to make the workday more relaxing than ever. The InfoCentrePro in standard on the dashboard features a 5" colour display, providing the driver with all relevant data about the tractor's operating conditions. It offers maximum convenience in terms of settings and information. The interior provides a peaceful working environment with engine noise, vibrations and heat reduced to a minimum as there is no connection between the cab and engine. In order to allow precise, stress-free work in all lighting conditions, the tractors can be fitted with an optional full LED package. The updated air conditioning system – with new additional air outlets and an optimized air flow – maintains the preselected temperature wheter its extremly hot or cold.

Go back to product page
Go back to product page
Go back to product page
Go back to product page
Go back to product page
Go back to product page
Walkaround

Test it in the field

Go back to product page
Book a test drive
SDF Smart Farming Solutions
PRECISION IS THE BASIC PREREQUISITE FOR PRODUCTIVITY
SDF Smart Farming Solution allows users to have the freedom and power to choose the products that best suit their business needs, maintaining full ownership of their decisions and their data. We provide products and services that perfectly match the practical requirements of today’s farmers, contractors or any other users:

Services available for 6 Series Powershift/RCshift:
- ISOBUS
- SDF Guidance
- SDF Data Management
- iMonitor 3
