SDF Extracare

Series 4E

COMPACT FORMAT MEETS GREAT INNOVATION.
Power: 66-102 HP
Cylinders: 3
Weight: 2.750-3.050 kg
Wheelbase: 2.100-2.166 mm

WELCOME TO THE COMFORTABLE DRIVER ZONE OF THE NEW SERIES 4E.

The new Series 4E Stage V is the ideal tractor for smaller farms and operators, local authorities and horticultural businesses.

With a choice of four different models with power outputs from 66 HP (48 kW) to 102 HP (71 kW), and with both 4WD and 2WD variants, this range has the perfect utility tractor for any user's specific needs. The new grille design is modern and stylish, while the forms of the sturdy cowl in premium pressed steel accentuate the extraordinary compactness of these utility tractors.

The new three-cylinder FARMotion 35 engines are extremely powerful, reliable and economical.

Two mechanical five-speed shuttle transmissions are available: 15+15 or 30+15 gears together with the powershuttle transmission with 15+15 or 30+30 Hi-Lo gearbox.

These tractors are equipped with front axles developed specifically by DEUTZ-FAHR for this power class. With a steering angle of 55°, electrohydraulically engaged differential locks and 4WD and all-wheel braking, the tractors of the new Series 4E are unstoppable. The extraordinary versatility of the new Series 4E comes to the fore when working with almost any implement.

Options available include a rear lift with EasyLift system, quick hitch couplings and a maximum load capacity of up to 3500 kg, a hydraulic system available as 48 l/min or 56 l/min variants with three distributors and PTOs with up to 3 speeds. The driver’s platform meets the highest standards for comfort. All the controls have been redesigned following the latest ergonomic principles. The new dashboard provides clear information concerning all the operating parameters of the tractor.

DEUTZ-FAHR Series 4E: the versatile and comfortable utility tractor.

Ask for a quote
See more details

Series 4E

Ask for a quote
Back to info

    Overview

    • Engine

    • Transmission

    • PTO

    • Hydraulic system

    • Brakes

    • Cab

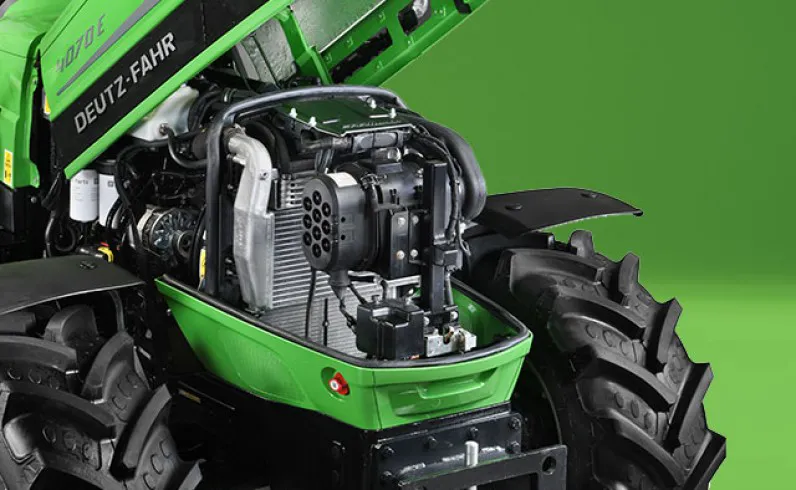

    FARMOTION 35 ENGINE. COMPACT DESIGN MATCHED WITH EXTRAORDINARY POWER AND TORQUE.

    Under the cowls of these new tractors are potent, compact three-cylinder FARMotion 35 engines with Stage V emissions compliance. Developed specifically for agricultural applications, these engines feature electronically controlled Common Rail fuel injection with injection pressures up to 2000 Bar which ensures extremely effective fuel atomisation in the combustion chamber, for even more power and a flat torque curve, with generous torque already available at low engine speeds.

    4070E-4080E models feature a combined exhaust after-treatment system consisting of a DOC and a DPF filter. Additionally, the two most powerful models in the range (4090E-4100E) are also equipped with an SCR catalytic converter.
    Other solutions that were key in achieving the impressive performance of these engines include a cooling system with a large surface area cooling pack (which consists of the main radiator, the intercooler, the fuel radiator and a transmission oil radiator), the user of a viscostatic cooling air fan to reduce power consumption, and the two-stage Powercore air filter with dust ejector. These solutions not only contribute to the efficiency of the engine but also to extended service intervals and enable quicker, simpler maintenance.

    DEUTZ-FAHR Series 4E: potent and efficient utility tractor.

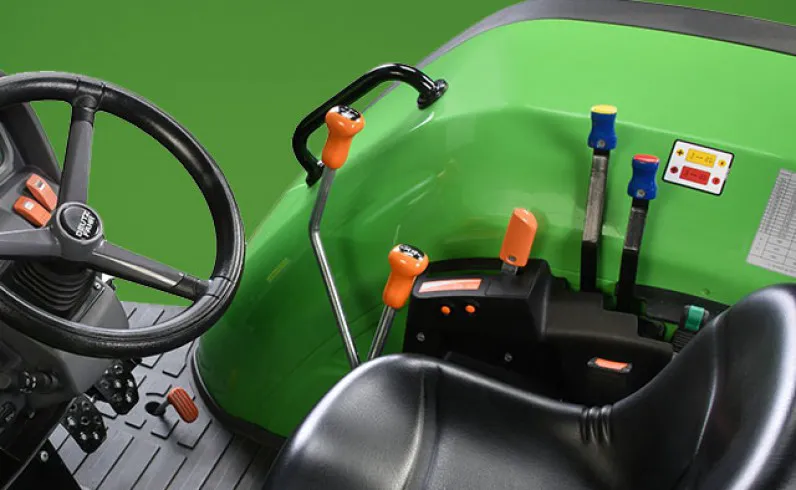

    A TRANSMISSION DESIGNED TO WORK WITH IMPLEMENTS. COMPACT DESIGN MATCHED WITH SUPERLATIVE PRECISION AND COMFORT.

    All Series 4E models are equipped with a five-speed transmission declined in several versions.

    The simpler version features a mechanical gearbox with 12+3 speeds that can be increased to 30+15 by choosing the 5-gears variant with the mechanical underdrive option.

    Powershuttle is even available providing high productivity and driving comfort. All tractors with Powershuttle are equipped as standard with SenseClutch responsiveness adjustment, ComfortClutch and Stop&Go functions. Transmission with Powershuttle is available in a 15+15 version and 30+30 with a Hi-Lo 2-step powershift.

    The final speed of 40 km/h can already be reached in ECO mode at 1800 rpm on all versions. This enables precise and efficient driving in all applications.

    DEUTZ-FAHR 4E Series: the precise, rapid utility tractor.

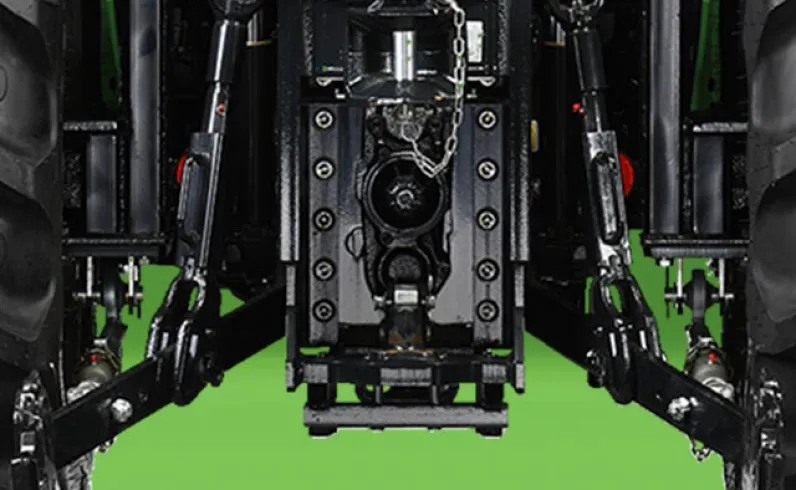

    COMPACT DESIGN MATCHED WITH SUPERLATIVE FLEXIBILITY.

    The new Series 4E also offers a wide choice of options for working with PTO-driven implements. Choose from four different configurations: 540, 540/540ECO, 540/540ECO/1000 or 540/540ECO with groundspeed PTO. In 540E speed mode, the selected output stub shaft rotation speed is attained at an engine speed of just 1560 rpm, close to peak torque.

    The dry clutch of the PTO is operated from a practical level allowing for progressive, smooth PTO engagement. Depending on the PTO configuration chosen, the tractor can be equipped with a fixed or a removable stub output shaft.
    DEUTZ-FAHR Series 4E: the practical, functional utility tractor.

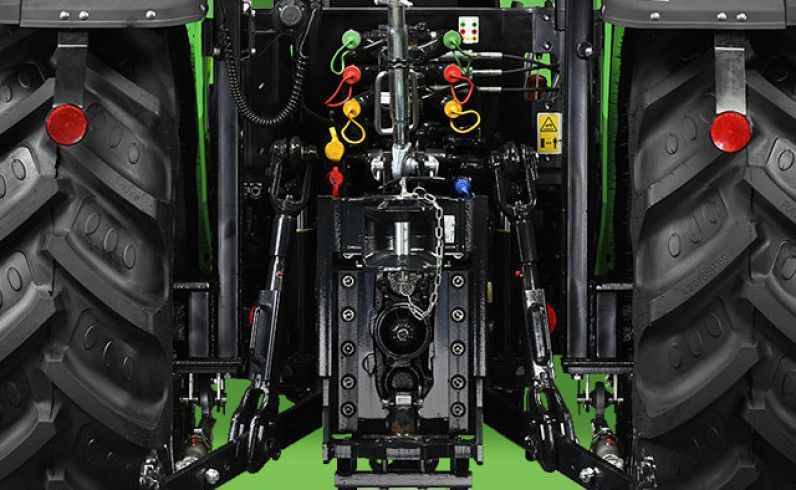

    COMPACT DESIGN MATCHED WITH SUPERLATIVE VERSATILITY.

    Utility tractors are put to work in an extremely varied range of tasks, such as working in poultry sheds and hay barns, draft or transport duty and working in the field, to mention but a few. With an extensive choice of implement attachment solutions, nothing is impossible for the Series 4E.

    As expected from a DEUTZ-FAHR tractor, the mechanical rear lift is extremely precise and responsive to the controls. The new EasyLift controller system lets the operator manage the movements of the lift with a single button on the right-hand console, making tasks in the field substantially less time-consuming.

    The lift has a load capacity of up to 3500 kg. The Category II three-point linkage is available with ball-type hitches and mechanical stabilisers. The hydraulic system is available with a choice of 48 l/min or 56 l/min open centre pumps and up to three rear distributors with a flow regulator and free return line. On both versions, the hydraulic steering system is fed by an independent pump, meaning that implements can count on all the hydraulic power of the main system at all times.

    DEUTZ-FAHR Series 4E: the versatile and potent utility tractor.

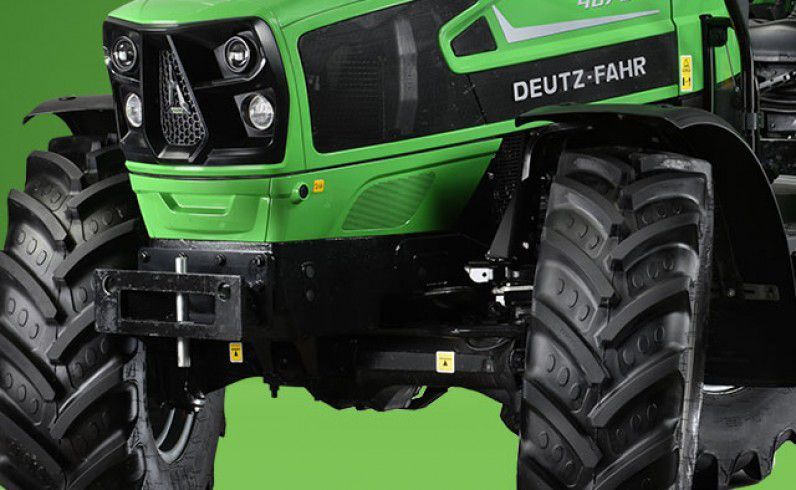

    COMPACT DESIGN MATCHED WITH EXTRAORDINARY MANOEUVRABILITY AND SAFETY.

    Crucial requirements for the Series 4E were absolute agility in restricted spaces and uncompromised traction in all conditions.

    To achieve this, DEUTZ-FAHR developed a new front axle specifically for this power class. The result is unrivalled manoeuvrability, and the unique design of the axle and front cowl of the Series 4E allows for an impressive axle swing range and a generous steering angle of 55°.

    Superlative traction is ensured in all conditions by electrohydraulically selected four-wheel drive and differential locks. Four-wheel drive models equip two steering cylinders and wet disc brakes on all four wheels.

    DEUTZ-FAHR Series 4E: the agile, safe utility tractor.




    THE DRIVER PLATFORM. COMPACT DESIGN MATCHED WITH SUPERLATIVE COMFORT.

    Operator comfort has always been a priority for DEUTZ-FAHR. Any operator will feel immediately comfortable and at home on board these tractors, thanks to the telescopically adjustable steering column, seat with adjustable, mechanically sprung suspension and controls now relocated on the new console to the right of the platform.

    Broad anti-slip steps and grab handles on both sides make it extremely easy and safe to climb onto and off the tractor.

    The controls have been reorganised logically per the frequency of use and colour-coded for immediate identification.

    The parking brake lever, the PTO clutch and speed selection controls are situated to the left of the operator. To the operator's right are the transmission controls, the hand throttle, the engine speed memory controls, the rear lift controls and the hydraulic control units.

    The new display in the centre of the dashboard provides the operator with clear information on the operating status and functions of the tractor in both digital and analogue formats. Naturally, the Series 4E offers an unobstructed view of the entire working area, making your work more productive and safer.

    The new rubber mat and insulating material minimise the noise, vibration and heat reaching the operator.

    DEUTZ-FAHR Series 4E: the comfortable, ergonomically designed utility tractor.




    Test it in the field

    Book a test drive

    SDF ExtraCare

    DEUTZ-FAHR provides one of the best warranties in the business

    SDF ExtraCare safeguards your investment, provides you with maximum control over operating costs and ensures long life for your product. You can rely on the high technical knowledge and professional support provided by the DEUTZ-FAHR service network.

    SDF extracare
    YOUR BENEFITS
    • Investment protection
    • Preservation of value
    • Better reselling opportunities
    • Use of original components and lubricants
    • Totally transferable
    • 3 or 5 years warranty
