Tractors

5D Ecoline Series

ESSENTIAL VERSATILITY
Power: 75-102 HP
Cylinders: 3-4
Weight: 3.200-3.300 kg
Wheelbase: 2.100-2.230 mm

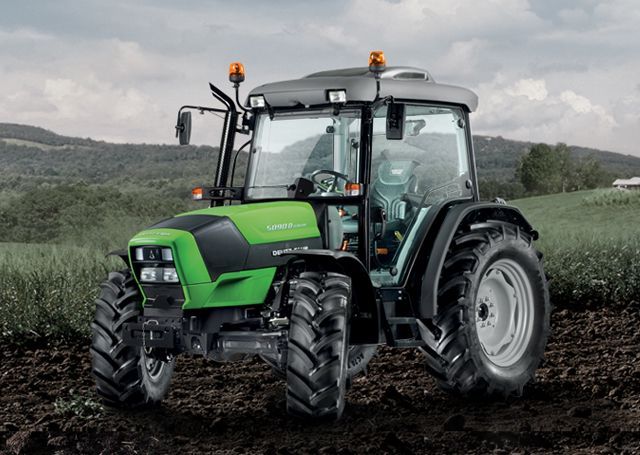

The 5D Series Ecoline comprises 3 models from 80 to 90 HP with low weight/power ratio, characterised by high performance and great ease of use. All models feature the new FARMotion engines and are available in a variety of versions and configurations, suitable for both farm and open field work.

Request a quote
Find out the details

5D Ecoline Series

Request a quote
Back to info

    Overview

    • Engine

    • Transmission

    • Hydraulic system

    • Cab

    Efficient, powerful, ecological

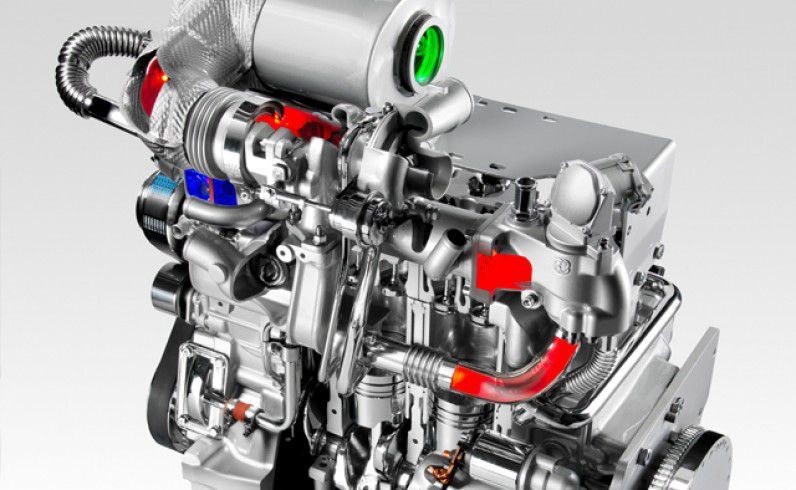

    The 5D Series Ecoline has the latest generation of FARMotion family engines specifically designed for agricultural use.
    In both the 3-cylinder (2,887 cc) or 4-cylinder (3,849 cc) version with high pressure Common Rail injection system (2,000 bar) it is able to provide greater efficiency, excellent performance and reduced consumption.
    The EGR electronically controlled external exhaust gas recirculation system and the DOC (Diesel Oxidation Catalyst) post-treatment system ensure low emissions and make 5D Series Ecoline tractors compliant with the Tier4i.standard



    The right gear for maximum reliability

    The dry clutch transmission with mechanical shuttle is configured as follows: five gears with two work ranges for a total of 10 FWD + 10 REV speeds, characterised by simplicity, reliability and reduced power absorption.

    As an option, a version with five gears with three work ranges with mini and supercreeper gear is available, for a total of 30 FWD + 15 REV speeds

    Adaptability and functionality with any equipment

    The hydraulic system of the 5D Series Ecoline, with a capacity of 42 l/min and four or six-way mechanical distributors, is able to guarantee great flexibility with any equipment. The mechanical rear lift has a lifting capacity of up to 3,600 kg, 1,750 kg for the front lift.
    The range of PTO speeds is extensive: 540/540ECO/1,000 and ground speed PTO with independent output shaft.



    Ergonomic controls and operating comfort

    5D Series Ecoline tractors take advantage of all the stylistic and functional solutions specifically created by Giugiaro Design. The cab has a four-upright structure with large windows for perfect visibility on all sides. The driver's seat is comfortable with the controls arranged in a simple and ergonomic manner, with "colour coding" that makes the tractor intuitive and easy to use.

    Try it in the field

    Request a test drive

    Technical specifications

    DTC

    DTC stands for Differential Traction Control. This is an electronically controlled differential with an automatic, progressively engaged differential locking system. The front and rear differentials are capable of locking by up to 100% to prevent the wheels from slipping and maintain constant traction in varying grip conditions. The DTC significantly improves performance on the road and in the field.

    Anti-dive + anti-roll

    The anti-dive system prevents the front suspension from diving and causing the centre of gravity to shift, to make braking significantly safer. The anti-roll function automatically adjusts the damping action of the suspension in relation to steering angle and speed, for superior stability and grip, especially when negotiating bends during use on the road.
