5D Series TTV

REACHING NEW HEIGHTS.
Power: 95-116 HP
Cylinders: 4
Weight: 4.210 kg
Wheelbase: 2.271 mm

Concentrated high technology.

The new DEUTZ-FAHR 5D TTV is the best utility tractor on the market today. With unprecedented versatility and class-beating high tech content, these machines are unlike anything else in their class. Practically unlimited scope for configuration, extraordinary compact construction, the TTV continuously variable transmission, a suspended front axle and a pressurised cab with a category 4 filtration system are just some of the features that set these machines apart from their rivals in this segment.

Request a quote
Find out the details

5D Series TTV

Request a quote
Back to info

    Overview

    • Engine

    • Transmission

    • PTO

    • Hydraulic system

    • Brakes

    • Cab

    Outstanding performance in a compact package.

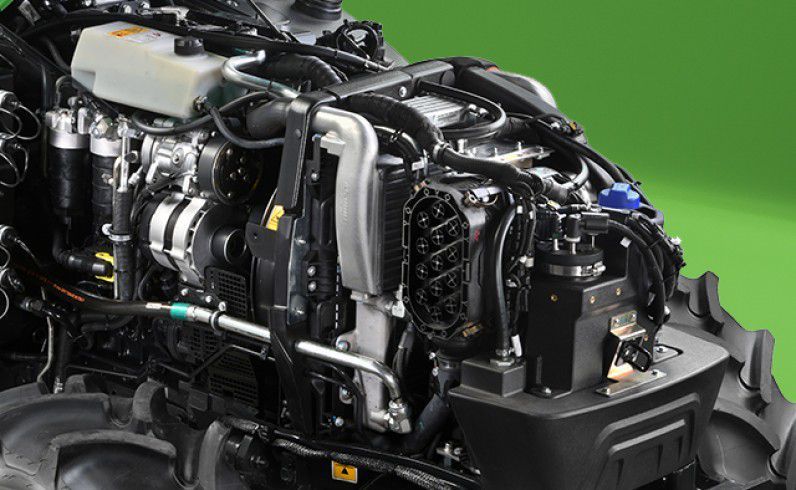

    The DEUTZ-FAHR 5D TTV range is powered by high performance FARMotion 45 engines with Common Rail injection (with injection pressures up to 2000 bar), 7-hole piezoelectric injectors, electronically controlled viscostatic fan and PowerCore air filter; this advanced technology lets the FARMotion 45 to deliver superlative performance in any situation, matched with outstanding fuel efficiency. These engines were developed specifically for agricultural use, with generous torque and power even at low engine speeds, and minimal maintenance requirements. The 5115 D TTV has a maximum power output of 116 HP in normal operating conditions, which can be increased to 126 HP for transport applications with the Overboost function. Compliance with Stage V emissions regulations is attained with a suite of solutions consisting of a DOC catalytic converter, an external, electronically controlled EGR circuit, a DPF particulate filter and an SCR catalytic converter. The exhaust aftertreatment system is integrated completely within the outline of the vehicle, allowing for a compact, low profile cowl for unimpeded forward visibility and a generous steering angle.

    Seamless, efficient power.

    Developed in-house by SDF specifically for machines in this power class, the innovative TTV continuously variable transmission maximises productivity with very low power losses, and combines the efficiency of a mechanical transmission with the comfort of hydrostatic technology.
    An efficient, reliable solution which continuously varies the ratio used to put the power produced by the engine to the most effective use possible, making your job even easier and more productive. With two automatic work ranges, this transmission offers the ability to drive at 40 km/h on the road at low engine speeds while still ensuring uncompromised productivity and efficiency in the field. Using the clutch and shifting gears are no longer necessary to drive the tractor, as everything is now controlled smoothly and precisely from the joystick and throttle. The PowerZero function, which holds the tractor in complete safety even on steep gradients, also minimises the need to use the brake pedal. The control software offers the operator a choice of 3 modes (Auto, PTO and Manual), ensuring the ideal response and behaviour of the machine for any task. The highly ergonomic joystick and puts all the primary functions at the operator's fingertips, for simple and intuitive control of the machine. A practical dial lets the operator select from a practically endless choice of different engine management modes ranging from “Eco”, which minimises fuel consumption, to “Power”, which maximises tractor performance.

    THE BEST IS ALREADY STANDARD.

    The generous standard equipment contributes significantly to the versatility of the DEUTZ-FAHR 5D TTV family. The rear PTO already comes as standard with 540 rpm, 540 ECO and 1000 rpm speed modes. Also standard is an electrohydraulic PTO clutch, engaged progressively and without sudden kickback either from the ergonomically situated button on the MaxCom console or from outside the cab, using control buttons mounted on the rear mudguards. But that's not all: another standard feature is a function which engages and disengages the PTO automatically in relation to rear lift height, saving precious time during headland turns.

    Top of its class.

    The hydraulic system of the Deutz-Fahr 5D TTV family may be configured with an 84 l/min pump or with a Load Sensing pump with an impressive capacity of 100 l/min on tap at an engine speed of just 1850 rpm. This latter variant also delivers 70 l/min of oil flow at an engine speed of only 1300 rpm, for maximum productivity with power hungry implements even at low engine speeds. All Deutz-Fahr 5D TTV tractors are equipped with an additional 42 l/min pump dedicated solely to the hydraulic steering system, for seamless and progressive steering action even at idle speed, irrespective of any other hydraulic demands.

    Go into detail

    TRUE ALL-WHEEL BRAKING.

    DEUTZ-FAHR 5D TTV Stage V tractors also come with premium solutions for axles, brakes and safety, such as all-wheel braking, for more responsive brake feel, especially when cornering, and for better performance when braking on gradients.
    For effortless headland turns, the SDD function halves the number of steering wheel turns needed to steer the wheels fully: if selected, the function is automatically disabled once the tractor exceeds a predetermined speed, for greater steering precision.
    In addition to a conventional swing axle, these tractors are available with an innovative double wishbone articulated quadrilateral front suspension derived from passenger car applications. The damping action of the axle is managed by an adaptive electrohydraulic circuit, which works in concert with the DTC (differential control function). Offering a combination of active damping, self-levelling and traction control capabilities, the independent front suspension system improves stability, grip, traction, comfort and safety in all terrain conditions, both in the field and on the road. Boasting a compact design and highly effective integrated management functions, the axle also includes Anti-Dive and Anti-Roll functions, which significantly increase productivity in tasks demanding extreme precision, such as hedge and living wall management. To facilitate maintenance and hitching front implements, the front suspension height is adjustable manually with two buttons in the cab. All tractors feature electrohydraulic 4WD and differential lock engagement as standard, and with optional speed and steering angle dependant automated 4WD and differential control.

    Top class comfort.

    The spacious 4-pillar cab comes as standard with air conditioning, hydro-silent block suspension, the ergonomic MaxCom console, instrument panel with InfoCentrePro colour LCD display, Bluetooth radio and an air-sprung driver seat. Options include an FOPS homologated roof and a Cat.4 filtration system, which allows the cab to meet the requirements for certification as personal protective equipment (PPE) for working with protective crop treatments. In spite of the compact external size of these machines, DEUTZ-FAHR 5D TTV tractors offer superlative levels of comfort, with features you'd normally expect to see only in a high power flagship tractor. The clearest example of this is the advanced MaxCom armrest integrated into the driver seat, which lets the operator access and control all the functions puts the operator with their forearm resting comfortably on a dedicated cushion. All the controls are organised rationally for superlative ergonomics, with extensive usage of the tried and tested, intuitive colour coded scheme developed by DEUTZ-FAHR.
    The auxiliary electrical connectors inside and outside the cab can be configured as preferred, while driving lights and work lights are offered as both halogen and LED variants. Users demanding the latest in connectivity can equip their tractor with the precision farming pack which, in addition to autosteer functionality, also adds an ISOBUS connection, managed from the 8" iMonitor3.

    Try it in the field

    Request a test drive

    Technical specifications

    ASM

    An electronic system which automatically engages and disengages drive to the front wheels and the differential lock in relation to steering angle, speed and rear lift position (depending on model).

    SDD

    Steering double displacement. This is a dual rotor steering pump activated and deactivated using a button. A dedicated solenoid valve changes the displacement of the steering pump. This halves the number of steering wheel turns necessary to perform manoeuvres.

    CAT 4 CABIN

    With Cat.4 filtration according to EN 15695 standards, the cab offers protection against dust, aerosols and vapours. This protection means that the cab qualifies as PPE. The driver can work safely without wearing additional masks and overalls during spraying.

    Jolly Buttons

    To the freely programmable buttons the operator can assign the power shuttle, the fast steering system, the rear lift, the hydraulic valves and even more functions. This makes the daily work intuitive and extremely comfortable.

    DTC

    DTC stands for Differential Traction Control. This is an electronically controlled differential with an automatic, progressively engaged differential locking system. The front and rear differentials are capable of locking by up to 100% to prevent the wheels from slipping and maintain constant traction in varying grip conditions. The DTC significantly improves performance on the road and in the field.

    Anti-dive + anti-roll

    The anti-dive system prevents the front suspension from diving and causing the centre of gravity to shift, to make braking significantly safer. The anti-roll function automatically adjusts the damping action of the suspension in relation to steering angle and speed, for superior stability and grip, especially when negotiating bends during use on the road.

    Xtend

    XTEND allows the display area to be extended easily, with a tablet, for example. You can either display the guidance application or even fully control all ISOBUS-UT functions – with your tablet! It is a cost-efficient and user-friendly alternative solution to a second terminal.

    EasySteer

    Easy Steer is a feature of the steering orbitrol to decrease the manual steering movements of the driver. Once activated with a button on the armrest, four steps (from 0-4) can be adjusted via settings in the iMonitor. The benefits are quick turning manoeuvres in headland and added convenience for the driver.

    AutoTurn

    The Auto-Turn feature allows automatic turns to be performed on the headland. You as the driver can decide which track to steer into. Different patterns are available – whether to skip lines or fill plots. Benefit from added convenience, decreased soil compaction on the headland and time saved!

    Hydraulic park-brake (HPB)

    Park brake for stopping the tractor and safely maintaining a stationary position in all gradient conditions. The park brake consists of a combined mechanical-hydraulic system which exerts a constant pressure on the rear brake discs. In addition, power losses up to 1.5 kW are eliminated, ensuring the lowest fuel consumption.
