6W Series (6120W | 6130W | 6145W)
THE PERFECT SOLUTION TO ANY NEED
The new 6W Series consists of three 6 cylinder models with power outputs from 120 to 145 HP, to cater for even the most specific need. From the tried and tested Stage III A Yuchai engines and efficient synchronised transmissions to high performance hydraulic systems and Heavy Duty axles, 6W Series tractors feature a host of effective technical solutions for outstanding reliability and efficiency while ensuring levels of comfort and ergonomics in keeping with the most exacting European standards. These are no compromise machines, even when it comes to style.
6W Series (6120W | 6130W | 6145W)
Potent and dependable
The superlative efficiency and reliability of the Yuchai engines are the results of zero-compromise technical choices such as: good engine displacement, a maximum rotation speed of just 2,300 rpm, turbocharger with intercooler, and electronically controlled Common Rail injection.
The 6-cylinder models have an engine displacement 6,494cm3³. These engines are distinguished by their torque and power curves suited to the agricultural context, whilst at the same time guaranteeing exceptionally low running costs.
The good size of the radiator unit and the considerable capacity of the diesel tank ensure optimum continuous functioning, even in very hot climates.
To avoid setbacks when working in particularly dusty places, all the models of this range are fitted with a cyclone pre-filter on the cab pillar, to increase the lifespan of the main air filter and improve engine efficiency without compromising the excellent visibility offered by the streamlined, sloping casing. The diesel tank is protected from the impact of stones and rocks by sturdy steel sheet partitions.
Simple, tough and efficient
6W Series tractors come with a 4 speed, 2 range synchronised transmission. All variants come as standard with a splitter, controlled from a practical lateral lever, which doubles the number of forward speeds available for a total of 16+8 speeds, and allowing the tractor to work at a minimum ground speed of just 1.29 or 1.43 km/h - depending on the model - at maximum engine speed. And if that weren't enough, the lowest range can be replaced with a supercreeper gear. While still offering a total of 16+8 speeds, the supercreeper configuration lets the driver choose from a number of ultra low drive ratios, the lowest of which allowing the tractor to work at just 400 or 450 m/h at maximum engine speed.
At the other end of the scale, 6 cylinder models have a top speed of 33 km/h.
Efficient, tough and extraordinarily configurable

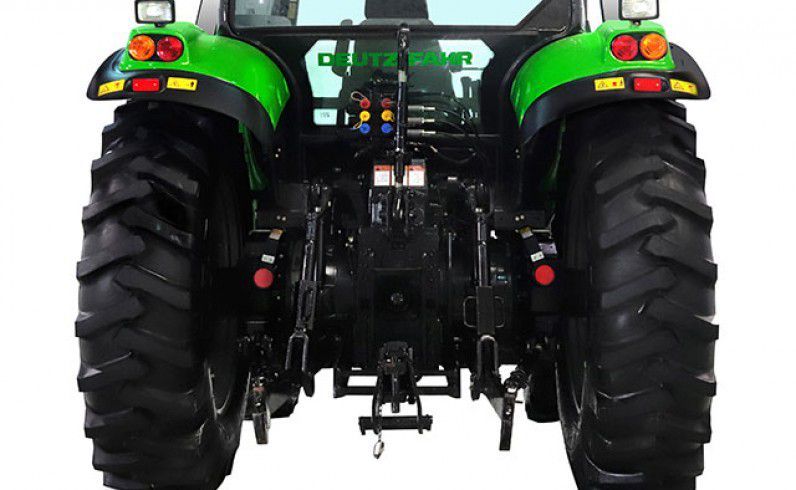

6W Series tractors are equipped as standard with a PTO with independent drive shaft and mechanical clutch, and with the universal 540 and 1000 rpm speed modes. As an option, for more efficient usage with implements with limited power demands, the 540 ECO may be added, or the PTO may configured with 540 ECO and 1,000 rpm modes only.
Simple, potent and extremely reliable
Everything about the hydraulic system is also conceived for total reliability. The system comes as standard with open centre architecture and a fixed displacement pump with an impressive output of 80 l/min. Another pump is installed as standard, dedicated to power steering and guaranteeing excellent operational smoothness even when the engine is running at minimum and during the simultaneous use of the main hydraulic circuits. Mechanically controlled 4-way distributors (6-way upon demand) are installed as standard at the rear, with the possibility to fit specific flow adjustment valves. The precise, mechanical steering control is particularly sensitive in the vicinity of the lower arms.
Class beating power and safety

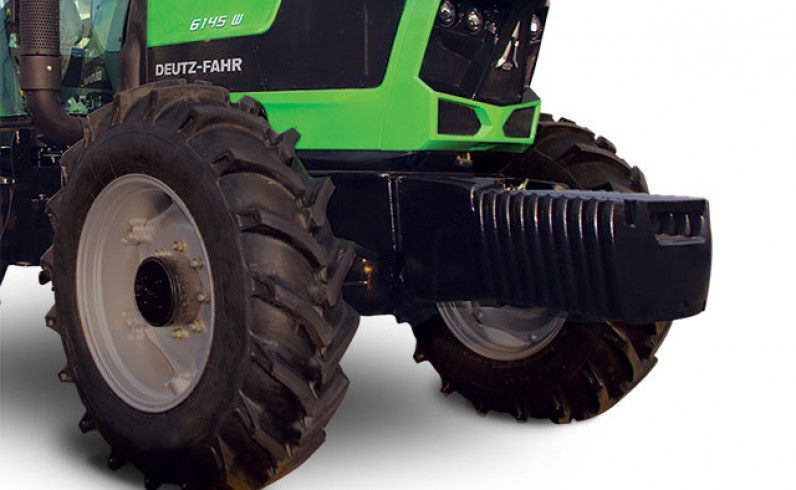

The new front carrier facilitates the installation of modular suitcase type ballast weights. This type of ballast weight offers significant advantages over a single piece weight, as the weight applied to the tractor may be tailored to the effective need, avoiding damage caused by unnecessary overloading, while the lower mounting position of the weights on the tractor does not interfere with forward visibility.
The sturdy front axle encompasses an automatically locked differential, while the 100% lockable differential on the rear axle is operated via a practical manual control.
The heavy duty rear axles use a powerful, multi-disk, oil-bath braking system and, if requested, they can be fitted with the handy continuous “bar-axle” track adjustment device.
Built to the most exacting standards for technology and ergonomics
6W Series tractors offer an extraordinarily comfortable and ergonomic working environment in keeping with the latest European standards and with controls that simple and intuitive to use even for a novice. Inside the cab - with just 4 pillars to ensure excellent all-round visibility and mounted on Silent-Blocks to effectively isolate the interior from the noise and vibration of the engine and transmission - air conditioning is fitted as standard, while a modern analogue dashboard provides the driver with all the information necessary on the functions of the tractor. Completing the standard equipment of the cab is a high visibility roof with opening roof hatch to give the interior a light and airy feel.
