Tractors

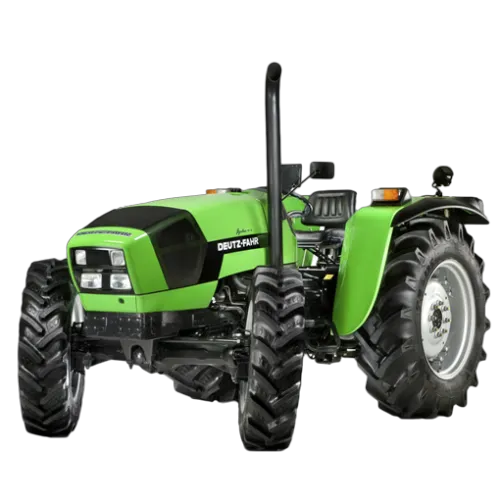

Agrolux 65 | 75 Series

SIMPLY INDISPENSABLE
Power: 46.5-54 HP
Cylinders: 3
Weight: 2.160-2.420 kg
Wheelbase: 1.975-2.037 mm

The Deutz-Fahr Agrolux 65/75 series is built specifically for sturdiness and reliability. Available as two power variants (62 and 72 hp), these are extremely productive tractors which, with their short wheelbase, are also extraordinarily nimble and manoeuvrable. Simple and extremely intuitive to use, Agrolux 65/75 tractors are conceived for small farms approaching mechanisation for the first time, or to complement the existing machine pool of a medium to large farm.

Request a quote
Find out the details

Agrolux 65 | 75 Series

Request a quote
Back to info

    Overview

    • Engine

    • Transmission

    • PTO

    • Hydraulic system

    • Cab

    A powerful, compact engine.

    The three cylinder SDF 1000.3 Series WTE3 engines are Tier IIIA compliant, extremely compact and combine ready power delivery even at low engine speeds with outstanding fuel economy.
    These SDF engines deliver impressive torque even at low engine speeds, for outstanding flexibility (while maximum torque is produced at 1600 rpm), and feature an electronic engine governor allowing the driver to set and store engine speed presets for specific applications.
    Agrolux 65/75 models also use an exclusive, high performance injection system. Much more advanced than conventional rotary pump systems, the exclusive SDF injection system uses individual pumps for each cylinder to maximise engine power (with very high injection pressures of up to 1,400 bar) and ensure extremely short injection times, while the electronic engine management system varies the injection timing itself in relation to load to optimise consumption.

    Go into detail

    Tractors built to take on any job.

    The standard transmission configuration consists of a synchronised gearbox with four forward speeds, three reverse speeds and three ranges. Perfectly spaced gears give Agrolux 65/75 tractors the capability to work from a minimum speed of 830 m/h up to a maximum speed of over 30 km/h, (with 16.90 R 30 rear tyres and an engine speed of 2280 rpm), while the driver has a choice of five speeds between 4 and 15 km/h - the most commonly used working range for the majority of tasks around the farm. And with ideal weight distribution and generous ground clearance, the Agroplus 65 and 75 are perfect for a wide variety of jobs, from the simplest to the most challenging.

    A simple but perfect PTO.

    Available with a 540 rpm or 540ECO PTO, or with a synchronised PTO with independent output shaft, the Agrolux 65 and 75 offer the ideal solution for all situations, even for transport applications on rough terrain and with steep gradients. The synchronised PTO makes it possible to work in complete safety with driven axle trailers, and with all implements which must be synchronised with the wheels of the tractor.



    Efficient hydraulic power transmission.

    The hydraulic system uses a main gear pump with a maximum capacity of 33 l/min, which feeds the rear lift and the two-way (or optional four-way) auxiliary distributors, while a secondary pump is dedicated to the power steering system, ensuring effortless, smooth steering action in all conditions and during simultaneous usage of the main hydraulic utilities. The rear 3-point linkage is equipped with a powerful hydraulic lift with an impressive maximum capacity of 3000 kg.

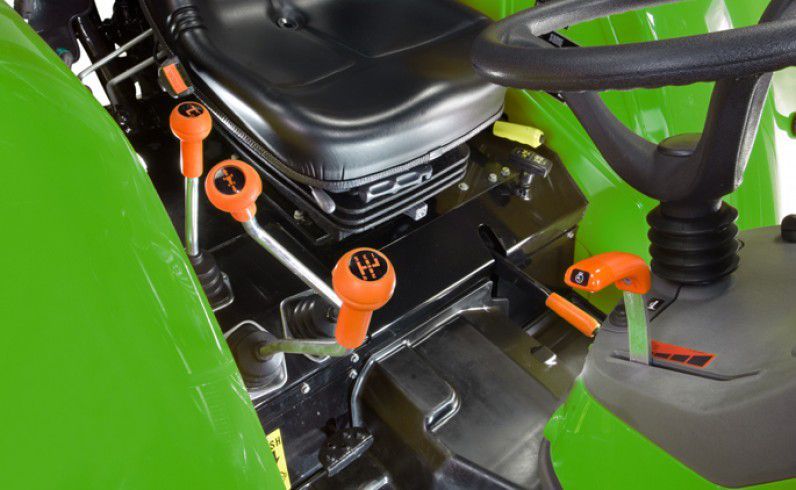

    Uncompromised comfort.

    For the modern farm today, superlative comfort and state of the art ergonomics are indispensable attributes even for low to mid power tractor. The Agrolux 65 and 75 offer a truly comfortable driver area: with an adjustable, mechanically sprung seat, ergonomically organised control levers and comprehensive instrumentation letting the driver immediately and constantly monitor the main functions of the machine.
